ScienceCube MAX-A2

MAX-A1

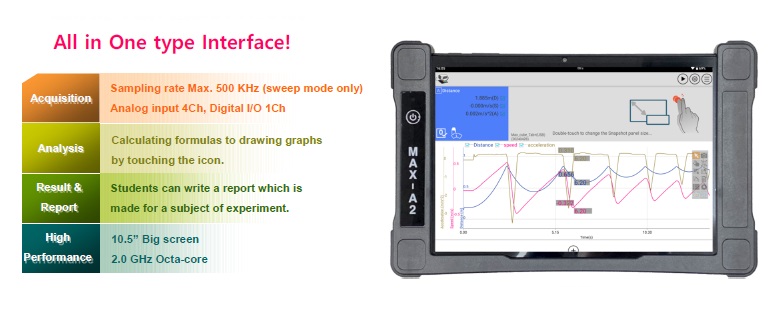

Features & Benefits

- MBL interface and smart device consist of one, so you can make an experiment more easily and quickly.
- Science#™ logging program is built-in(pre-install), it enables experimentation, analysis and report by using various built-in contents.

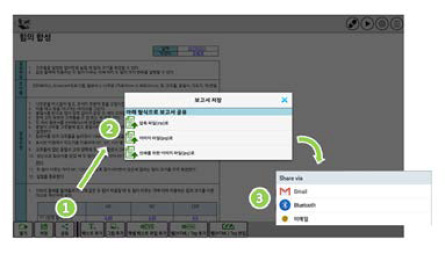

- Enables more efficient laboratory operation by utilizing experiment and report sharing through the network.

- You can make an experiment by connecting various sensors of ScienceCube® using 4 channels of sensor ports and 1 channel of digital in/out ports. - It is a perfect ICT device for educational environments, because it supports network enabling teacher to monitor student.

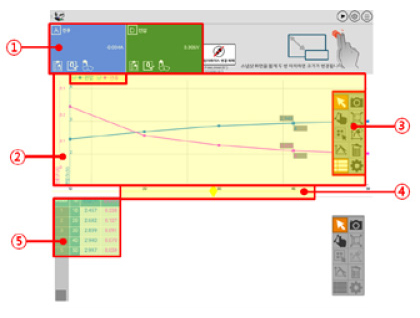

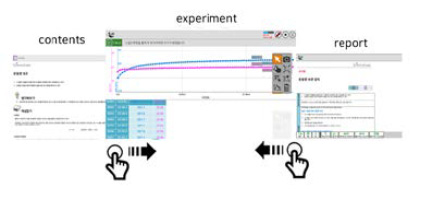

Science #

- Analysis base on Contents.

- A variety contents for Physics, Chemistry, Biology and Earth Science.
- Experiment environment Auto-configuration.


It is possible to connect all ScienceCube’s interface and data logger.

Technical data

Performance

Display
      Resolution
10.5" + 10 point Capacitive Touch
1920 * 1280 FHD
Processor
      Main-Application
      Sub-Application

2.0GHz Octa Core CPU
120MHz, 32bit MCU
Storage
      RAM
      Flash Memory
      Expandable(Optional)

4GB
64GB
MicroSD slot (factory built-in)
Operating System Android 12
Video
      Camera

5M Pixel(Rear)
2M Pixel(Front)
Connectivity Wi-Fi 802.11 b/g/n/ac@2.4G+5GHz
Bluetooth 5.0
Audio Internal Speaker x 2
Internal Microphone x 1
Audio output x 1 (*After Sep. 2024)
MIC. input x 1 (*After Sep. 2024)
Additional Function FM Radio
GPS

Datalogging

Measurement
      Real time
      Sweep mode
      AD Resolution

1,000 Samples/s
Max. 500,000 Samples/s
12bit
Sensor Ports
      Analog & Digital
      Digital I/O & Sensor

4 channels
1 channels
Built-in Sensors 3-axis Accelerometer
3-axis Gyroscope
Sound

General

Power Requirements
      USB Type-C

DC 5V, 2.0A
Rechargeable Battery
      Main System
      Sub System
Li-Polymer
5,300mAh
2,000mAh(Default) or 4,000mAh(*Optional:Depends on order specifications)
Environment
      Operating
      Storage

0 .. 40°C
-40 .. 60°C

Mechanics

Dimensions 294 x 193 x 50mm (W x L x H)
Weight 810g (29 oz)
Housing Materials ABS + Rubber

Packaging & Accessories

Packaging Dimensions 380 x 285 x 85mm (W x L x H)
Packaging Weight 1.6 Kg (3.5 lb)
Packaging Materials
      Carton
      Internal Cushioning

Paper
PE-Form
Include Cables
      Sensors
      USB Charging

1394-6P plug (1.5m) * 4
USB Type A/C (0.8m) * 1
Charging USB Adaptor
      Input
      Output
*Optional(Varies by Country)
AC220V, 50/60Hz
DC5V, 2.0A (USB type A)

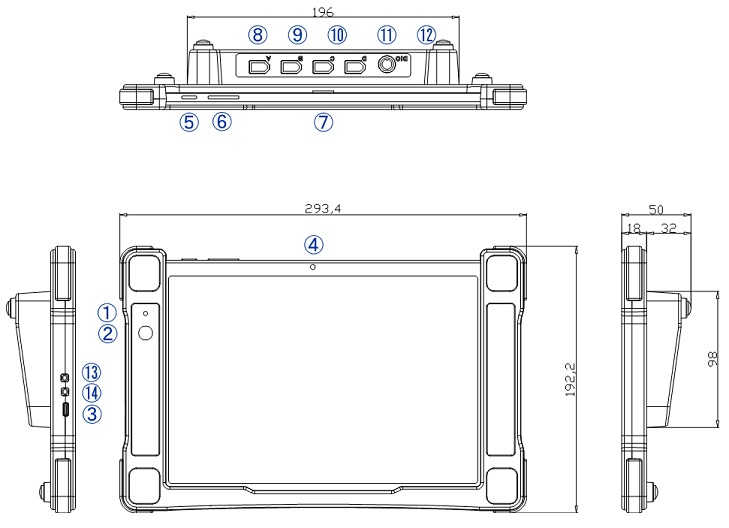

Functions

①INTERFACE STATUS LED
②INTERFACE POWER ON/OFF
③POWER INPUT/CHARGE(USB-Type C)
④FRONT CAMERA
⑤MAIN POWER ON/OFF
⑥SOUND VOLUME UP/DOWN
⑦REAR CAMERA
⑧ANALOG/DIGITAL SENSORS PORT [A]
⑨ANALOG/DIGITAL SENSORS PORT [B]
⑩ANALOG/DIGITAL SENSORS PORT [C]
⑪ANALOG/DIGITAL SENSORS PORT [D]
⑫DIGITAL I/O & SENSOR PORT
⑬AUDIO OUTPUT
⑭MIC. INPUT

Notice

- This product is to be used for science educational purposes only.
- It is not appropriate for any industrial, medical, or commercial applications.
