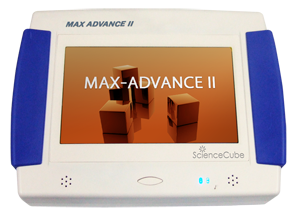

Max Advance II (discontinued)

Max Advance II is similar to application of PC environment.
Because it’s preinstalled with the newest Windows CE 6.0 platform.
And with the necessary applications to perform an experimental science based on
various user's requirements.

Max Advance II

Data Loggers Technical Features

Processor SAMSUNG S5PV210, 1GHz
ARM CortexTM-A8, 32bit RISC, 32/32 KB I/D Cache. 512 KB L2 Cache
Memory 256MB mobile DDR RAM
1GB NAND Flash
Operation System Microsoft Windows CE 6.0
Display 7" TFT-LCD with Touch-screen,
1024 x 600 pixel, 16.7M colors
Ports and Connectors 3EA USB 2.0 host ports
1EA USB 2.0 slave port
10/100Mbps Ethernet LAN port
Headphone stereo output port
1 SD card slot
External VGA out(D-sub)
12V, 3.5A, DC adaptor input
WiFi dongle(optional), internal USB port, supporting 802.11b/g
Sensor input port Analog/Digital 4 ports (12bit ADC)
Digital input/output 2 ports (SPI & DIO)
Sampling time Max. 500KHz/CH
Resolution 12 bit A/D
Power Supply 4200mAh Li-Polymer rechargeable battery
Lithium ion rechargeable 3.0V (for clock)
Adaptor/Battery Charger - 12.0V, 3.5A(max)
Dimensions and weight 245 * 186 * 54mm (9.65 * 7.32 * 2.13 inches)
Approx 1000g(2.2 lbs), body 845g, battery 155g
