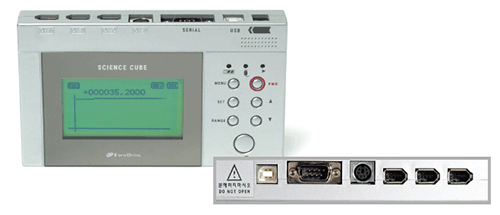

ScienceCube Pro
ScienceCube PRO is designed to operate under various computer circumstances.
Especially, experiments based on Excel as well as on Microsoft Windows,
which makes ScienceCube PRO user-friendly.
Data studio
- - Stand alone type of device
- - Running without connection to the PC
- - Portable-small & light feature
- - No need to add special cards or drives. Automatically identifies the sensor.
- - The Features menu on the LCD screen is composed with graphic User interface (GU) style icons can give you the easiest way.
- - Various languages support. (English, Japanese, Chinese, French, Spanish, Arabic, Thailand language etc)
- - As a firmware updates, provided that new sensors are produced or more functions are added newly. Science cube Pro will be automatically updated to fit on the newly produced sensors.
Data Loggers Technical Features
| Size | 160mm×90mm×25mm |
|---|---|
| Display | 128mm×64wide graphic mono screen |
| Data management | Up to 50,000 data collection and up to 16times experiment stores |
| Battery | Rechargeable lithium-polymer battery (1250mAh) |
| Sensor input | Using 3channels simultaneously. |
| Sampling time | Real time mode 0.05sec/3channels |
| Real time mode 0.005sec/ 1channel | |
| Stan-alone mode 0.0001sec/1channel | |
| Resolution | 12bit A/D |
| Digital in/output port | 1 channel Output : PWM, Sine, Square, Triangle Sawtooth wave |
| Communication port | USB Port, Serial Port |
