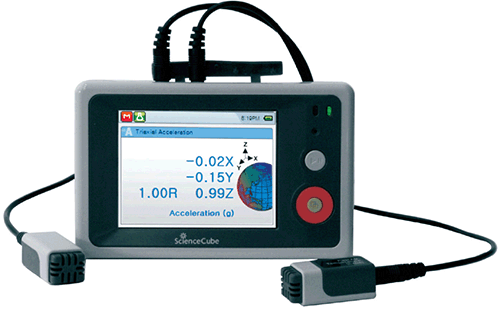

ScienceCube MENTOR (discontinued)
The advanced technology of ScienceCube MENTOR is remote and portable
data logger for Science Education. MENTOR's breakthrough the amounts
of sensors and probes offer up to 32 virtual input channels using VI modules.
Data loggers Technical Features
| Size | 533 MHz SAMSUNG Mobile application processor |
|---|---|
| Display | 320x240 pixel, Stylus 3.5" TFT color touch screen |
| Power and Battery | Rechargeable, 3.7V 2300mAh Lithium-Polymer battery Charging via USB to computer or power adapter Data reading time(Max.): Up to 4hours, 72hours on hibemate logging |
| Memory | 256MB Flash ROM, 256MB RAM built-in storage External micro SD card slot : up to 16GB |
| Indicator | Data logging status LED and Power status LED |
| Button and Switch | 5-button navigation and menu cluster Start/Stop button, Power On/Off switch |
| Audio | Built-in mono speaker and microphone Stereo headphone port and microphone port |
| Input and Output | I/O port : 4-Physical channels, simultaneous and shared AI, DIO Fast ADC port : 16bit 200kHz/1 channel, 50kHz/4 channels |
| Sensor | AD 16bit resolution with digital filter Support for multi-dimensional sensor and virtual input |
| Connect-to-Computer | Using 16bit resolution with digital filter Support for multi-dimensional sensor and virtual input |
| Connect-to-Computer | Using Microsoft ActiveSync/Windows Mobile Device Center |
| Mentor OS | Microsoft Windows CE 5.0 full version |
